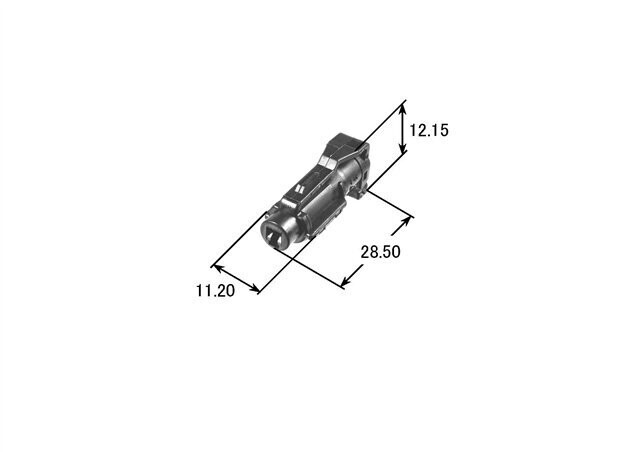

7123-7414-40 x 100pcs

7123-7414-40 x 100pcs

Store / SWP Connectors
£158.00
Estimated delivery time
Shipping: 14–19 days
In stock
Product Details
Classified Parts Housing
Family SWP Connectors
Type -
Yazaki Part Number 7123-7414-40
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Sealed
Male/Female Female
Number of Poles 1
Tab Width mm(inches) 1.8(070)
Material PBT
Plating -
Colour Light Gray
Rating -
Mating Part Numbers 7222-7414-40
Product Specification No. YPES-11-04-012
Instruction Manual No. YPES-15-029
Product Specification
Allowable Current(Ref.) 9A(Ref)
Low Level Contact Resistance 3milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -40 to 120deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7116-1471 7157-7811-80 -
7116-1471-08 7157-7812
7116-1472 7157-7897-60
7116-1472-08 7157-7899-90
Show More
