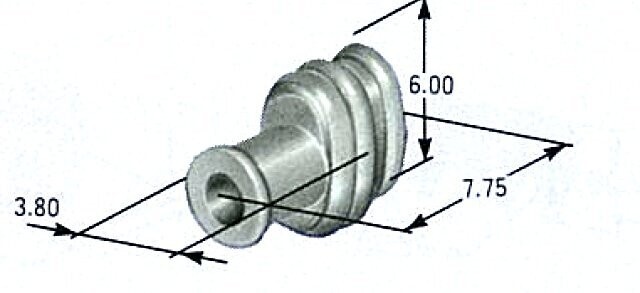

7157-3950-80 x 1,000pcs

7157-3950-80 x 1,000pcs

Store / Seal / SSD Seals
£290.00
Estimated delivery time
Shipping: 13–18 days
In stock
Product Details
Classified Parts Wire Seal
Family SSD Connectors
Type -
Yazaki Part Number 7157-3950-80
Connection Type Wire to Wire
Unsealed/Sealed Sealed
Male/Female N/A
Number of Poles -
Tab Width mm(inches) N/A
Material silicon
Plating -
Colour Brown
Rating -
Mating Part Numbers
-
Product Specification No. YPES-11-04-029
Instruction Manual No. YPES-15-106
Product Specification
Allowable Current(Ref.) Refer to the table of Housing
Low Level Contact Resistance Refer to the table of Housing
Insulation Resistance Refer to the table of Housing
Withstanding Voltage Refer to the table of Housing
Temperature Range Refer to the table of Housing
Application List of Installable Components
Wire Type Wire Size(mm2) Terminals
CAVS 0.3 to 0.5 7114-1680-02
CAVS 0.3 to 0.5 7114-1680-08
CAVS 0.3 to 0.5 7116-1680-02
CAVS 0.3 to 0.5 7116-1680-08
Show More
