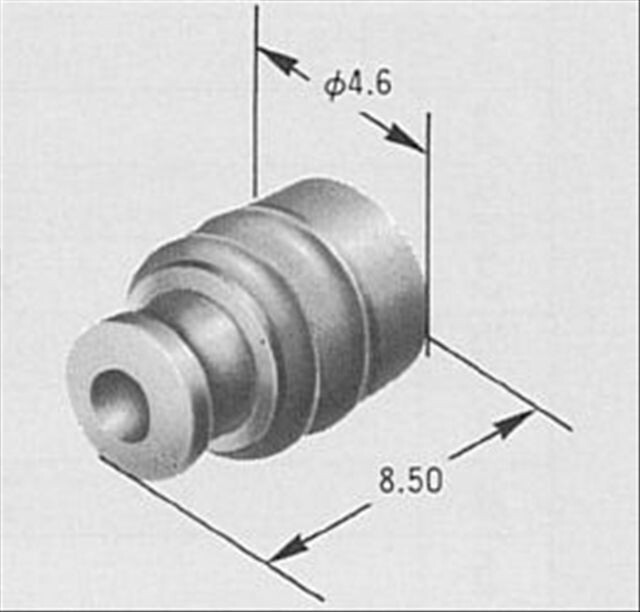

7158-3004-40 x 2,000pcs

Name: 7158-3004-40 x 2,000pcs
SKU: 00131
Price: 210.0 GBP
Availability: InStock

£210.00

Estimated delivery time

Shipping: 13–18 days

In stock

Product Details

Classified Parts	Wire Seal
Family	2.3II(090II) Connectors 1.5(060) Connectors
Type	-
Yazaki Part Number	7158-3004-40
Connection Type	Wire to Wire Wire to Board Wire to Device
Unsealed/Sealed	Sealed
Male/Female	N/A
Number of Poles	-
Tab Width mm(inches)	N/A
Material	silicon
Plating	-
Colour	Gray
Rating	-
Mating Part Numbers	-
Product Specification No.	YPES-11-04-019 YPES-11-05-120
Instruction Manual No.	YPES-15-119 YPES-15-550

Product Specification
Allowable Current(Ref.)	Refer to the table of Housing
Low Level Contact Resistance	Refer to the table of Housing
Insulation Resistance	Refer to the table of Housing
Withstanding Voltage	Refer to the table of Housing
Temperature Range	Refer to the table of Housing

Application List of Installable Components
Wire Type	Wire Size(mm2)	Terminals
AVS	0.85	7116-4026
AVS	0.85	7116-4029-08
CAVS	0.85 to 1.25	7114-4103-02
CAVS	0.85 to 1.25	7114-4103-08
CAVS	1.25	7116-4026
CAVS	1.25	7116-4029-08
CAVS	0.85 to 1.25	7116-4103-02
CAVS	0.85 to 1.25	7116-4103-08
