7182-8049 x 100pcs

7182-8049 x 100pcs

Store / 1.5(060) Connectors
£128.00
Estimated delivery time
Shipping: 13–20 days
In stock
Product Details
Classified Parts Housing
Family 1.5(060) Connectors
Type -

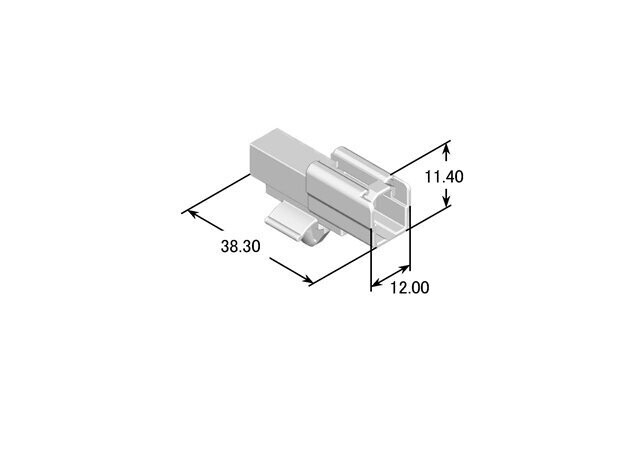

Yazaki Part Number 7182-8049
Connection Type Wire to Wire
Unsealed/Sealed Unsealed
Male/Female Male
Number of Poles 2
Tab Width mm(inches) 1.5(060)
Material PBT
Plating -
Colour Natural
Rating -
Mating Part Numbers 7183-8049
Product Specification No. YPES-11-05-120
Instruction Manual No. YPES-15-383
Product Specification
Allowable Current(Ref.) 10A(Ref)
Low Level Contact Resistance 10milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7114-4100-02 - -
7114-4100-08 -
7114-4101-02 -
7114-4101-08 -
Show More
