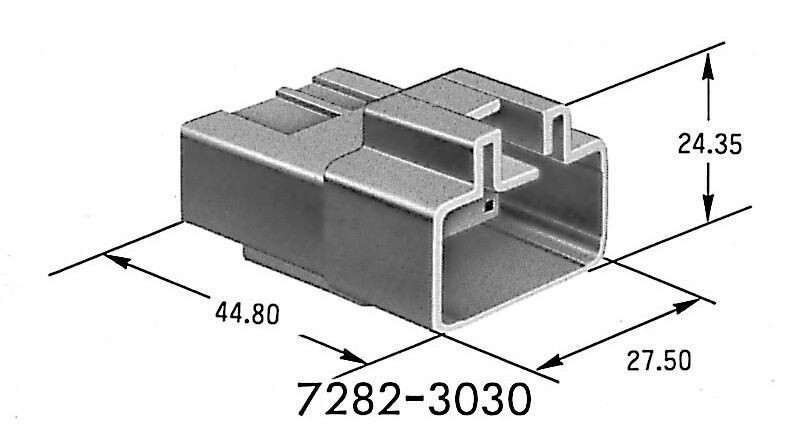

7282-3030 x 100pcs

7282-3030 x 100pcs

Store / 8.0(312) Connectors
£170.00
In stock
Product Details
Classified Parts Housing
Family 8.0(312) Connector
Replacement part number Mating Part Numbers 7283-3030
Connection Type Wire to Wire Unsealed/Sealed Unsealed
Male/Female Male Number of Poles 3
Tab size (mm)
  • 8.00
 Materials PBT
Size (mm)
(Outer shape
of parts)		 Length 44.80 Plating
Width 31.40 Colour NATURAL
Height 27.45 Hybrid NO
Clip installation structure YES Application bolt
Compatible hole
size (mm)		 Min Compatible plate
thickness (mm)		 Min
Max Max
Electric current classification
  • LARGE
Product standard No.
Handling manual No.

Product Specification

Allowable Current(Ref.) 42A(Ref) Low-voltage
low-current resistance		 3milli ohm Max.(Initial)
Insulation resistance 100Megohm Min.(at 500VDC) Withstand voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C

Application List of Installable Components

Terminal 7114-6040
7114-6041
7114-6042
Show More
