7282-5834 x 100pcs

7282-5834 x 100pcs

Store / 1.0III(040III) Connectors
£146.00
Estimated delivery time
Shipping: 12–17 days
In stock
Product Details
Classified Parts Housing
Family 1.0III(040III) Connectors
Type -

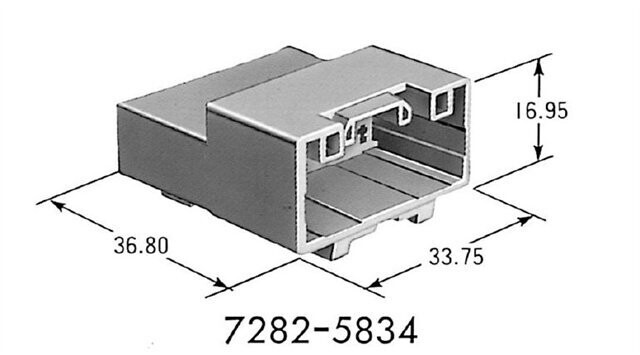

Yazaki Part Number 7282-5834
Connection Type Wire to Wire
Unsealed/Sealed Unsealed
Male/Female Male
Number of Poles 22
Tab Width mm(inches) 1.0(040)
Material PBT
Plating -
Colour Natural
Rating -
Mating Part Numbers 7283-5834
Product Specification No. YPES-11-05-099
Instruction Manual No. YPES-15-274
Product Specification
Allowable Current(Ref.) 3A(Ref)
Low Level Contact Resistance 5milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7114-4231-02 - -
7114-4231-08 -
Show More
