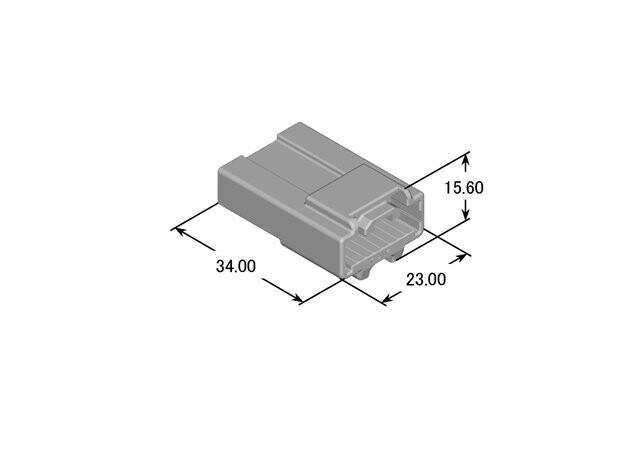

7282-6483

7282-6483

Store / 0.64(025) Connectors
£9.00
In stock
100
Minimum purchase quantity: 100 items
Product Details
Classified Parts Housing
Family 0.64(025) Connectors
Type -
Yazaki Part Number 7282-6483
Connection Type Wire to Wire
Unsealed/Sealed Unsealed
Male/Female Male
Number of Poles 8
Tab Width mm(inches) 0.64(025)
Material PBT
Plating -
Colour Natural
Rating -
Mating Part Numbers 7283-6483
Product Specification No. YPES-11-05-134
Instruction Manual No. YPES-15-442
Product Specification
Allowable Current(Ref.) 3A(Ref)
Low Level Contact Resistance 5milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range *9 -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7114-4764-02 - -
