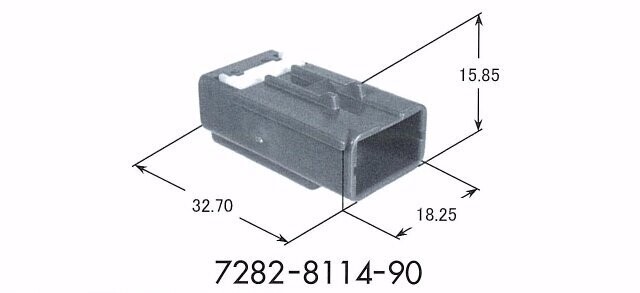

7282-8114-90

7282-8114-90

Store / 0.64(025) Connectors
£0.00
Sold out
Product Details
Classified Parts Housing
Family 0.64(025) Connectors
Type -
Yazaki Part Number 7282-8114-90
Connection Type Wire to Wire
Unsealed/Seald Unsealed
Male/Female Male
Number of Poles 4
Tab Width mm(inches) 0.64(025)
Material Heat-resistance Nylon
Plating -
Color Blue
Rating -
Mating Part Numbers 7283-7199-90
Product Specification No. YPES-11-05-149
Instruction Manual No. YPES-15-515

*2 )The Family introduction page can be seen by clicking the Family name.

Product Specification
Allowable Current(Ref.) 3A(Ref)
Low Level Contact Resistance 5milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range *9 -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7114-4764-02 - -
