7283-2763-30 x 100pcs

7283-2763-30 x 100pcs

Store / HS Connectors
£140.00
Estimated delivery time
Shipping: 12–19 days
In stock
Product Details
Classified Parts Housing
Family HS Connectors
Type -

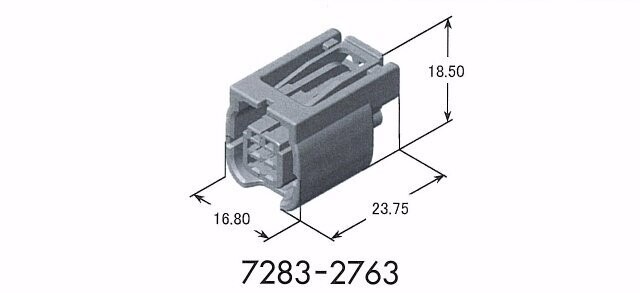

Yazaki Part Number 7283-2763-30
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Sealed
Male/Female Female
Number of Poles 4
Tab Width mm(inches) 0.64(025)
Material PBT
Plating -
Colour Black
Rating -
Mating Part Numbers 7282-2763-30
Product Specification No. -
Instruction Manual No. -
Product Specification
Allowable Current(Ref.) 3A(Ref)
Low Level Contact Resistance 5milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -40 to 120deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7116-4415-02 7158-3165-90 -
7116-4416-02 7158-3166-60
7116-4417-02 7158-3167-80
- 7158-3168-80
Show More
