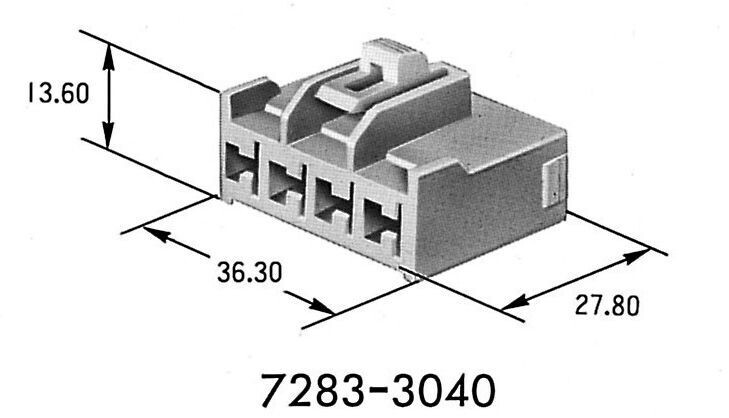

7283-3040 x 100pcs

7283-3040 x 100pcs

Store / 8.0(312) Connectors
£220.00
In stock
Product Details
Classified Parts Housing
Family 8.0(312) Connector
Replacement part number Mating Part Numbers 7282-3040
Connection Type Wire to Wire Unsealed/Sealed Unsealed
Male/Female Female Number of Poles 4
Tab size (mm)
  • 8.00
 Materials HPA
Size (mm)
(Outer shape
of parts)		 Length 27.80 Plating
Width 37.90 Colour NATURAL
Height 26.70 Hybrid NO
Clip installation structure NO Application bolt
Compatible hole
size (mm)		 Min Compatible plate
thickness (mm)		 Min
Max Max
Electric current classification
  • LARGE
Product standard No.
Handling manual No.

Product Specification

Allowable Current(Ref.) 42A(Ref) Low-voltage
low-current resistance		 3milli ohm Max.(Initial)
Insulation resistance 100Megohm Min.(at 500VDC) Withstand voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C

Application List of Installable Components

Terminal 7116-6040
7116-6041
7116-6042
Show More
