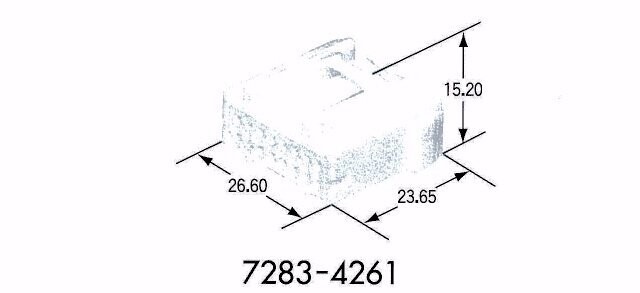

7283-4261 x 100pcs

7283-4261 x 100pcs

Store / 0.64(025) Connectors
£155.00
Estimated delivery time
Shipping: 13–18 days
In stock
Product Details
Classified Parts Housing
Family 0.64(025) Connectors
Type -
Yazaki Part Number 7283-4261
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Unsealed
Male/Female Female
Number of Poles 16
Tab Width mm(inches) 0.64(025)
Material PBT
Plating -
Colour Natural
Rating -
Mating Part Numbers 7382-4261
Product Specification No. YPES-11-05-134
Instruction Manual No. YPES-15-442
Product Specification
Allowable Current(Ref.) 3A(Ref)
Low Level Contact Resistance 5milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7116-4660-02 - -
