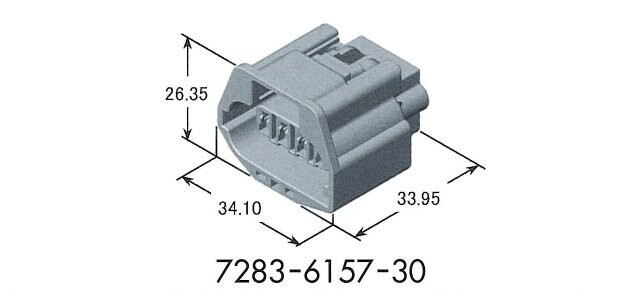

7283-6157-30

7283-6157-30

Store / 1.5(060) Connectors
£0.00
Sold out
Product Details
Classified Parts Housing
Family 1.5(060) Connectors
Type -
Yazaki Part Number 7283-6157-30
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Sealed Sealed
Male/Female Female
Number of Poles 4
Tab Width mm(inches) 1.5(060)
Material PBT
Plating -
Colour Black
Rating -
Mating Part Numbers
-
Product Specification No. YPES-11-04-075
Instruction Manual No. YPES-15-550
Product Specification
Allowable Current(Ref.) 10A(Ref)
Low Level Contact Resistance 10milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
7116-4102-02 7158-3003-90 -
7116-4102-08 7158-3004-40
7116-4103-02 7158-3030-50
7116-4103-08 7158-3031-90
Show More
