7283-7020-10 x 100pcs

Name: 7283-7020-10 x 100pcs
SKU: 00205
Price: 195.0 GBP
Availability: InStock

£195.00

In stock

Product Details

Classified Parts	Housing
Family	2.3II(090II) Connector
Replacement part number		Mating Part Numbers	7282-7020-10
Connection Type	Wire to Wire	Unsealed/Sealed	Sealed
Male/Female	Female	Number of Poles	2
Tab size (mm)	2.30	Materials	PBT

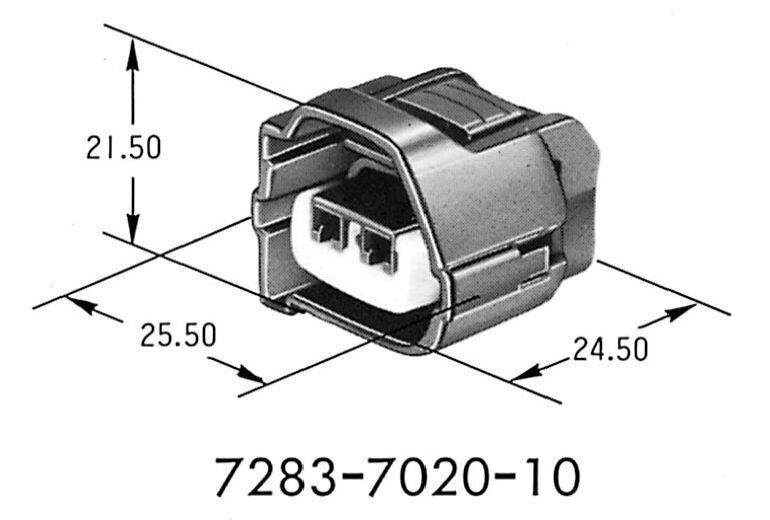

Size (mm) (Outer shape of parts)	Length	24.50	Plating
Width	25.50	Colour	DARK GRAY
Height	22.50	Hybrid	NO
Clip installation structure	NO	Application bolt
Compatible hole size (mm)	Min		Compatible plate thickness (mm)	Min
Max		Max
Electric current classification	MEDIUM
Product standard No.
Handling manual No.

Allowable Current(Ref.)	10A(Ref)	Low-voltage low-current resistance	3milli ohm Max.(Initial)
Insulation resistance	100Megohm Min.(at 500VDC)	Withstand voltage	1000V AC (1min.)
Temperature Range	-40 to 120deg.C

Terminal	7116-4025 7116-4026 7116-4027 7116-4028-08 7116-4029-08	Wire seal	7157-3646 7157-3821 7158-3006-90 7158-3007-10 7158-3008-80
Dummy plug	7157-8761 7157-8767	Installation possible part

7283-7020-10 x 100pcs
