7283-8730-30 x 100pcs

Name: 7283-8730-30 x 100pcs
SKU: 00087
Price: 179.0 GBP
Availability: InStock

£179.00

Estimated delivery time

Shipping: 14–19 days

In stock

Product Details

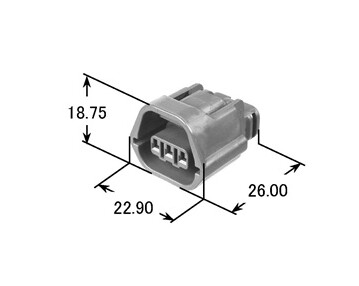

Classified Parts	Housing
Family	SSD Connectors
Type	-
Yazaki Part Number	7283-8730-30
Connection Type	Wire to Wire Wire to Board Wire to Device
Unsealed/Sealed	Sealed
Male/Female	Female
Number of Poles	3
Tab Width mm(inches)	1.2(048)
Material	PBT
Plating	-
Colour	Black
Rating	-
Mating Part Numbers	7182-8730-30
Product Specification No.	YPES-11-04-029
Instruction Manual No.	YPES-15-106

Product Specification
Allowable Current(Ref.)	5A(Ref)
Low Level Contact Resistance	3milli ohm Max.(Initial)
Insulation Resistance	100Megohm Min.(at 500VDC)
Withstanding Voltage	1000V AC (1min.)
Temperature Range	-40 to 120deg.C

Application List of Installable Components
Terminals	Wire Seals	Holders
7116-1680-02	7157-3950-80	7157-4603-80
7116-1680-08	7157-3951-60	7157-4603-80
