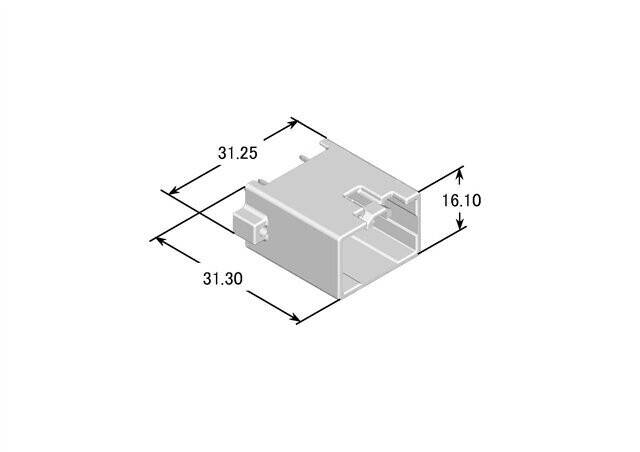

7382-3805

7382-3805

Store / 1.5(060) Connectors
£0.00
Sold out
Product Details
Classified Parts Housing
Family 1.5(060) Connectors
Type -
Yazaki Part Number 7382-3805
Connection Type Wire to Board
Unsealed/Sealed Unsealed
Male/Female Male
Number of Poles 8
Tab Width mm(inches) 1.5(060)
Material PBT
Plating -
Colour Natural
Rating -
Mating Part Numbers 7183-6096
Product Specification No. YPES-11-05-120
Instruction Manual No. YPES-15-383
Product Specification
Allowable Current(Ref.) 10A(Ref)
Low Level Contact Resistance 10milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range -30 to 80deg.C
Application List of Installable Components
Terminals Wire Seals Holders
- - -
