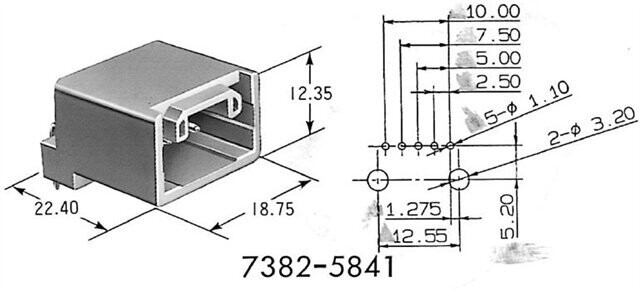

7382-5841

7382-5841

Store / 1.0III(040III) Connectors

£0.00

Sold out

Product Details

Classified Parts	Housing
Family	1.0III(040III) Connectors
Type	-
Yazaki Part Number	7382-5841
Connection Type	Wire to Board
Unsealed/Sealed	Unsealed
Male/Female	Male
Number of Poles	5
Tab Width mm(inches)	1.0(040)
Material	PBT
Plating	-
Colour	Natural
Rating	-
Mating Part Numbers	7283-5830
Product Specification No.	YPES-11-05-099
Instruction Manual No.	YPES-15-274

Product Specification
Allowable Current(Ref.)	3A(Ref)
Low Level Contact Resistance	5milli ohm Max.(Initial)
Insulation Resistance	100Megohm Min.(at 500VDC)
Withstanding Voltage	1000V AC (1min.)
Temperature Range	-30 to 80deg.C
