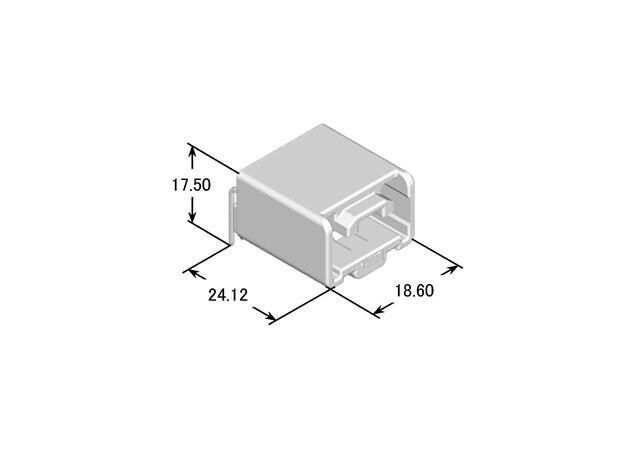

7382-8117

7382-8117

Store / 0.64(025) Connectors

£0.00

Sold out

Product Details

Classified Parts	Housing
Family	0.64(025) Connectors
Type	-
Yazaki Part Number	7382-8117
Connection Type	Wire to Board
Unsealed/Seald	Unsealed
Male/Female	Male
Number of Poles	6
Tab Width mm(inches)	0.64(025)
Material	PBT
Plating	-
Color	Natural
Rating	-
Mating Part Numbers	7283-8117
Product Specification No.	YPES-11-05-134
Instruction Manual No.	YPES-15-442

Product Specification
Allowable Current(Ref.)	3A(Ref)
Low Level Contact Resistance	5milli ohm Max.(Initial)
Insulation Resistance	100Megohm Min.(at 500VDC)
Withstanding Voltage	1000V AC (1min.)
Temperature Range *9	-30 to 80deg.C
